Warpath Energy 20 Amp, Adjustable Voltage (13.9v - 17.2v) Lithium Battery Charger

The Warpath Energy 20AAC 20A, Adjustable Voltage Lithium Battery Charger.

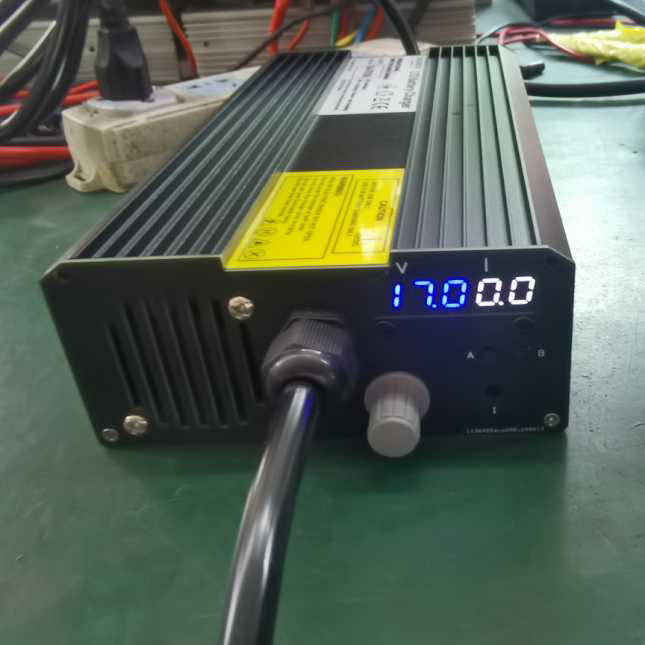

Upon Receipt of the W.E. 20AAC, please inspect for possible damage during shipment. Once the visual inspection has been completed, Please extend the 2m long, 3 prong plug and plug in the charger Without Load. After a short boot up time the charger should power up (If not please check the panel mounted Power switch is illuminated) Once the unit Powers Up, you will see the Voltage setpoint likely at 17.2 in Blue and the Amperage reading in White at 0.0. Here you will need to dial in your desired Voltage endpoint of the Battery you intend to charge. To decrease Voltage, turn the dial counter clockwise, to increase Voltage turn the knob clockwise. This is not a super sensitive potentiometer, you will need to turn several turns per Volt. Once you have your desired Voltage set, connect the Load (Battery). When the Load is connected, you will note that the White Amperage reading will display outgoing charge amperage. From here the Charger will act as a Smart charger, and lower charge amperage as the SOC reaches capacity.

  The W.E. 20AAC will also act as a battery maintainer, or 20A power supply.

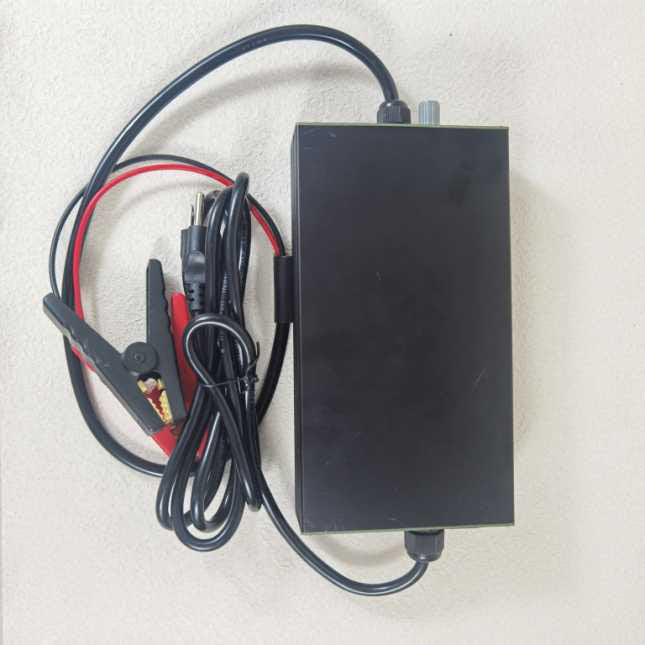

2M Power Cord, 1M Clamp Cable. Strong, Sturdy Clamps, also Low profile for those tight places.

*Please be Certain you connect Red to + and Black to -. Any cross connection will short out the charger, and it will not be covered under warranty.*
